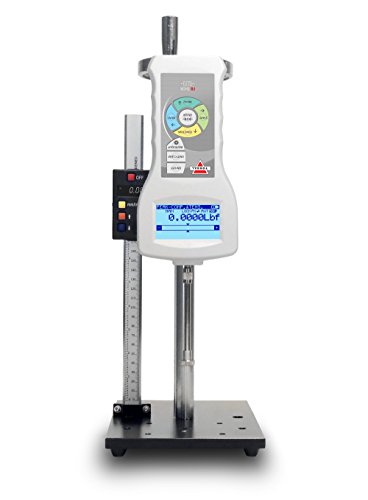

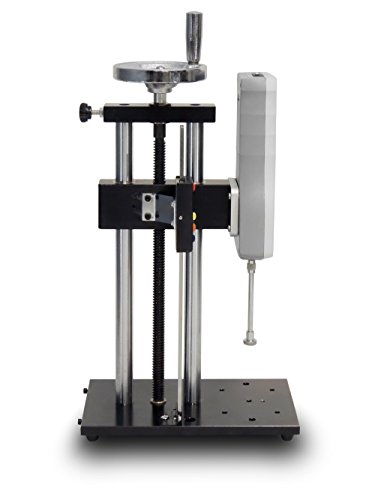

Force Gauge Test Stand, Tension and Compression Measurements, Precise 3mm Travel per Rotation Hand Wheel Operated, Digital Caliper

Price: $524.33
(as of Apr 01, 2024 20:20:41 UTC – Details)

The Torbal Test stand optimizes the functionality of all Torbal force gauges up to 100lbF (500N). The stand is built from high quality metals which allow performing high capacity tension and compression measurements. Specially designed mounting plates allow users to easily connect the force gauge as well as necessary attachments and grips. The stand is equipped with a digital caliper and allows to performing precise measurements at 3mm travel distance per rotation. The maximum travel length is 335mm.
Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 9.17 x 5.95 x 18.19 inches; 13 Pounds
Item model number ‏ : ‎ Test Stand
Date First Available ‏ : ‎ October 8, 2012
Manufacturer ‏ : ‎ Scientific Industries
ASIN ‏ : ‎ B01N7NHGMY
Country of Origin ‏ : ‎ Poland

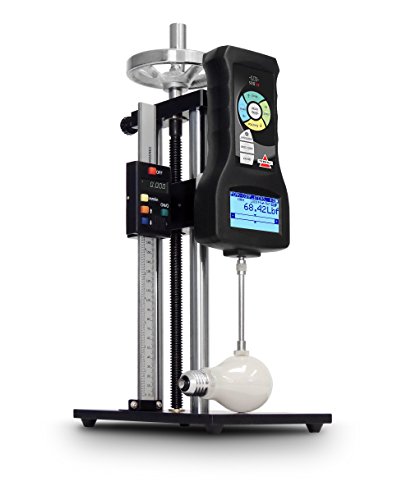

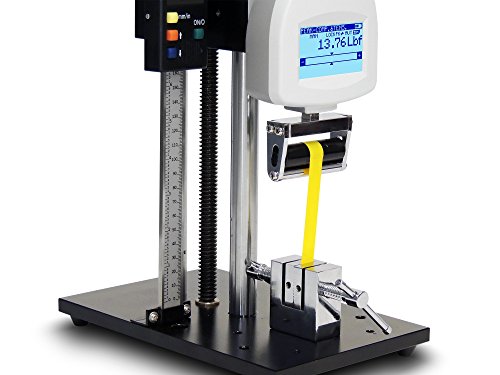

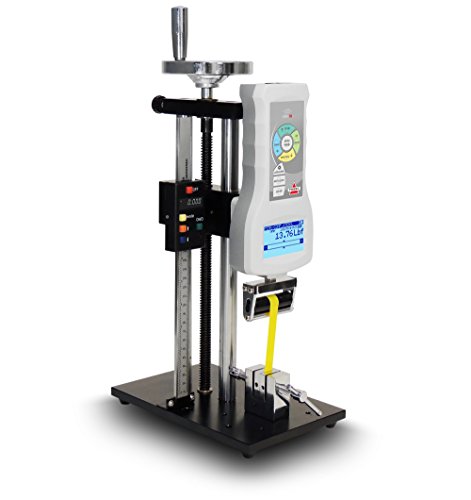

For performing high capacity tension and compression measurements up to 100lbF
3mm travel distance per rotation

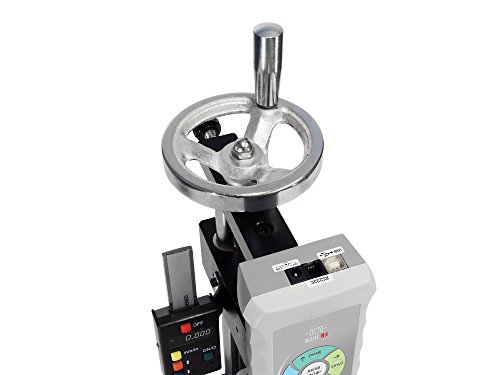

Easy to use hand wheel for precise movement and testing

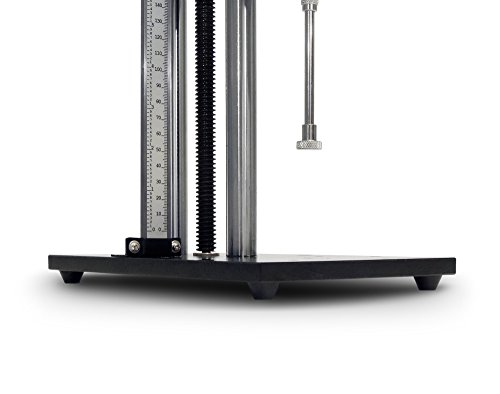

Equipped with a digital caliper

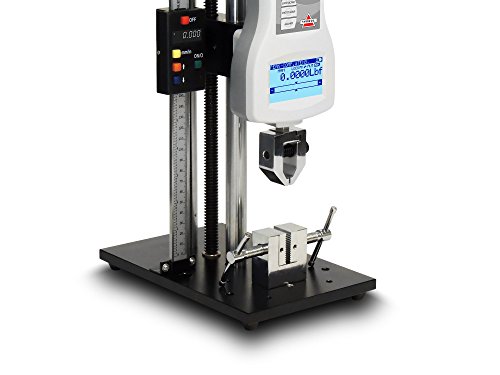

Specially designed mounting plates allow for easily connecting force gauge and attachments (Force gauge sold separately)
